Digital Fluoroscopy

 RF SYSTEM

REAL-TIME CONSOLE SOFTWARE









A. Operation modes & real-time functions



* Real-time Fluoroscopy

* Real-time variable Contrast and Brightness

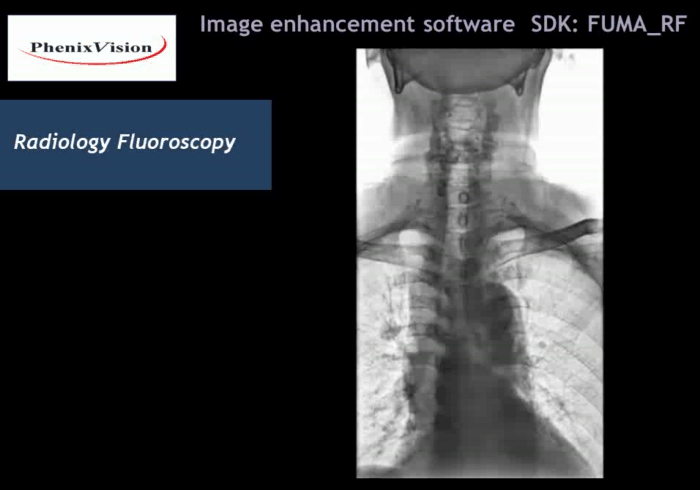

 * Real-time Image Processing ( FUMA_DYN )



B. Memory & Database

(which depends on the modality characteristics)



* Acquisition up to 25 frames/sec

     * 100 cine-loops (1 cine-loop = 200 images) are

   stored in temporary memory before saving it

   in permanent storage. Hence an addition of

   about 10,000 images to the total memory

   mentioned in next point.

     * Total storage : 25,000images+405cine-loops

   or 105,000 images for permanent storage in

   basic system

     * Storage of cine-loops with frame by frame

   viewing and images.

     * Auto run of the cine-loop.

     * Patient information database to store,

   manage, retrieve patient, procedure

   image and cine-loop

   information stored in the system.

* Image Mosaic or Multi-map to allow thumbnail

   viewing of images for quick access.

     * Query the database using key words.



C.Post Image Processing



* Image rotation controls (free degree rotation)

* Zooming

 * Measure (length)

 * Image inversion (Mirroring or Flip)

 * Thumbnail images which help in easy view of

   all the frame in a cine-loop.

 * Negative and positive.

 * Image Annotation like

a) Image Header

b) Image Footer

c) Text on image

d) Drwaing objects on image

     * Variable edge sharpness

     * Noise reduction filters

     * Contrast and brightness control

     * Pseudo coloring

(6 types of predefined color lookup tables)



D.Back up



* CD writer

* CD publisher

(Backup CD can be viewed on PC)



D.Image format conversion



* JPEG, BITMAP, TIFF

* AVI (Video)



F.Additional features



* The user-friendly Graphical User Interface

   makes its operation simple allowing more

   people to utilize the system with out

   extensive training.

* Analog output for multi format and laser

   camera.

 * Acquisition time of 17 seconds at

   16 frame/sec, 12.5 seconds at 12 frames/sec.



G.Upgradeablilty



* To DSI (Digital Spot Imaging System)

 * To DSA (Digital Subtraction Angiography)



H.DICOM



* Write DICOM CD

* DICOM Print

 * DICOM Send

 * DICOM Viewer
